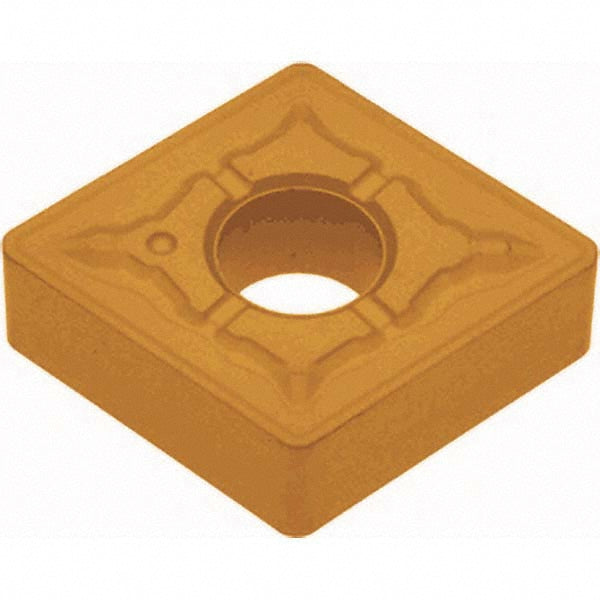

CNMG 644 TH Carbide Insert, Grade T9215, TiCN - Tungaloy 6772203

Tungaloy

CNMG 644 TH Carbide Insert, Grade T9215, TiCN - Tungaloy 6772203

MFR# 6772203ISO/ANSI# CNMG 644 THSeries CNMG-TH

$34.69List $44.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772203 is a CNMG 644 TH carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTH
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle80degree
Industry standard numberCNMG 644 TH
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialCarbide
Insert shapeDiamond 80
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 644 TH
Length range0.7000 - 10.0000
Manufacturers catalog number6772203
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
