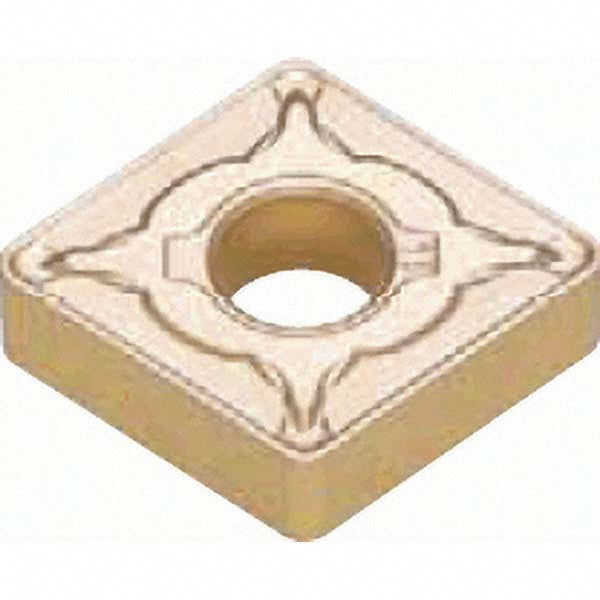

CNMG 433 THS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772205

Tungaloy

CNMG 433 THS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772205

MFR# 6772205ISO/ANSI# CNMG 433 THSSeries CNMG-THS

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772205 is a CNMG 433 THS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTHS
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 433 THS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 433 THS
Length range0.5000 - 0.6000
Manufacturers catalog number6772205
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.3307
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
