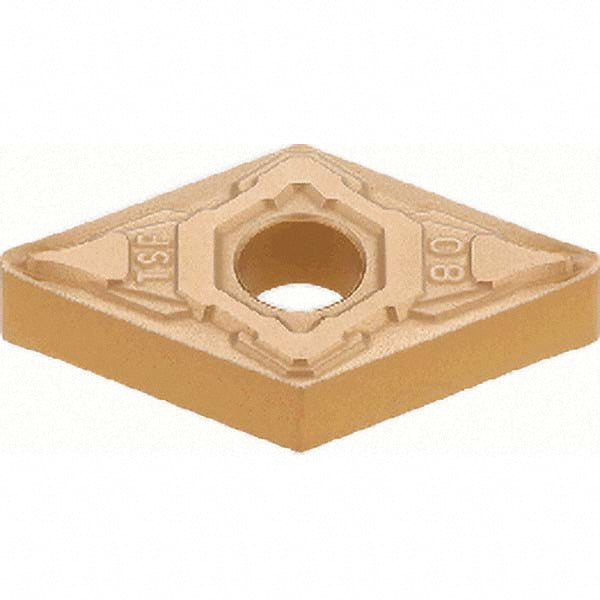

DNMG 431 TSF Carbide Insert, Grade T9215, TiCN - Tungaloy 6772214

Tungaloy

DNMG 431 TSF Carbide Insert, Grade T9215, TiCN - Tungaloy 6772214

MFR# 6772214ISO/ANSI# DNMG 431 TSFSeries DNMG-TSF

$23.93List $30.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772214 is a DNMG 431 TSF carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTSF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 431 TSF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 431 TSF
Length range0.7000 - 10.0000
Manufacturers catalog number6772214
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
