Tungaloy

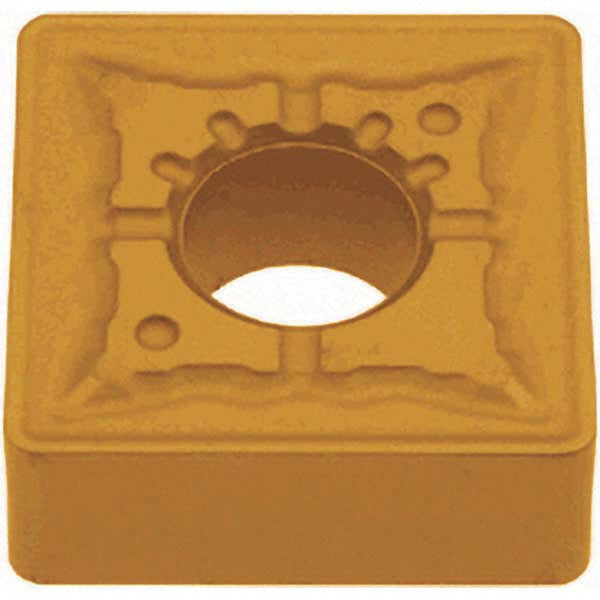

SNMG 543 TH Carbide Insert, Grade T9215, TiCN - Tungaloy 6772300
MFR# 6772300ISO/ANSI# SNMG 543 THSeries SNMG-TH
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6772300 is a SNMG 543 TH carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerTH
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle90
Industry standard numberSNMG 543 TH
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 543 TH
Length range0.6000 - 0.6500
Manufacturers catalog number6772300
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
