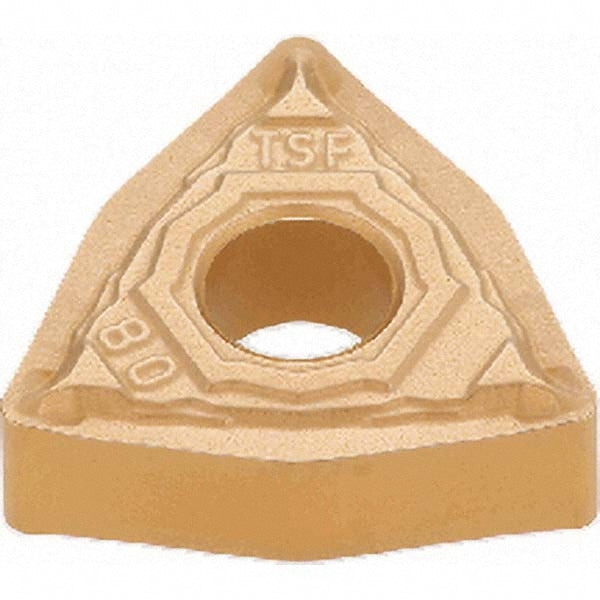

WNMG 432 TSF Carbide Insert, Grade T9215, TiCN - Tungaloy 6772373

Tungaloy

WNMG 432 TSF Carbide Insert, Grade T9215, TiCN - Tungaloy 6772373

MFR# 6772373ISO/ANSI# WNMG 432 TSFSeries WNMG-TSF

$17.50List $22.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772373 is a WNMG 432 TSF carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTSF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG 432 TSF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 432 TSF
Length range0.6500 - 0.7000
Manufacturers catalog number6772373
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6860in
Wiper edgeNo
