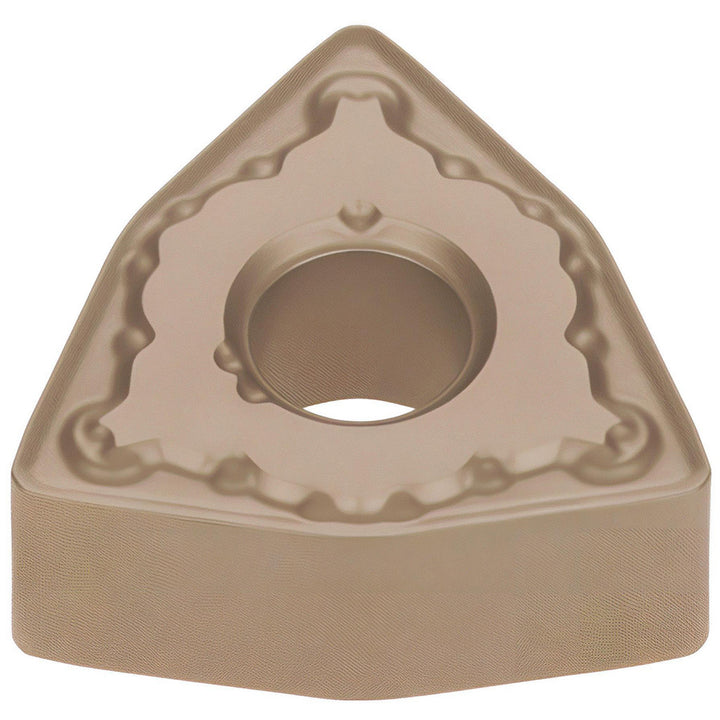

WNMG060408E-FW T9215 Carbide Insert, Grade T9215, TiCN - Tungaloy 6772376

Tungaloy

WNMG060408E-FW T9215 Carbide Insert, Grade T9215, TiCN - Tungaloy 6772376

MFR# 6772376ISO/ANSI# WNMG 332E FWSeries WNMG*E-FW

$13.92List $17.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772376 is a WNMG060408E-FW T9215 carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerFW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleWiper Edge
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG 332E FW
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5120
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408E-FW T9215
Length range0.5000 - 0.6000
Manufacturers catalog number6772376
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-12
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.5120in
Wiper edgeYes
