Tungaloy

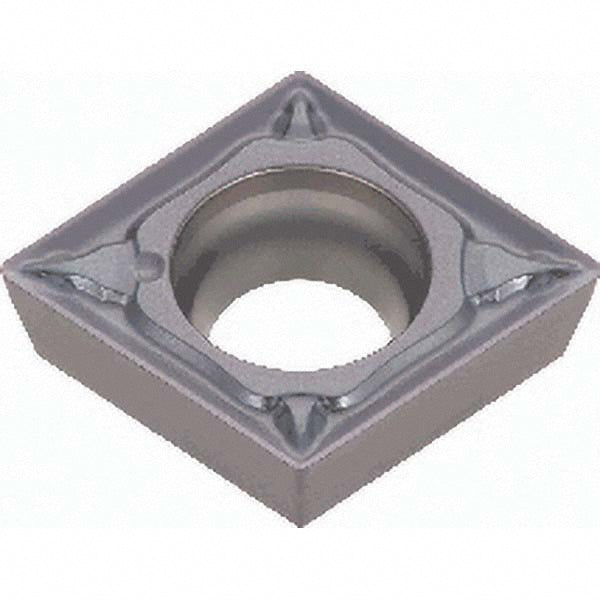

CPMT060202-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772442
MFR# 6772442ISO/ANSI# CPMT 21.50.5 PSSeries CPMT-PS
$13.80List $17.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6772442 is a CPMT060202-PS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPS
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPMT 21.50.5 PS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060202-PS
Length range0.0000 - 0.3000
Manufacturers catalog number6772442
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
