Tungaloy

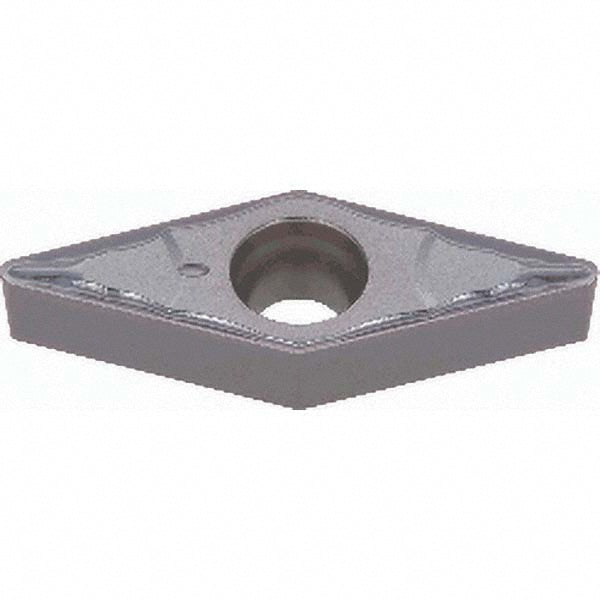

VBMT160408-PS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772489
MFR# 6772489ISO/ANSI# VBMT 332 PSSeries VBMT-PS
$30.68List $39.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6772489 is a VBMT160408-PS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPS
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVBMT 332 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-PS
Length range0.7000 - 10.0000
Manufacturers catalog number6772489
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
