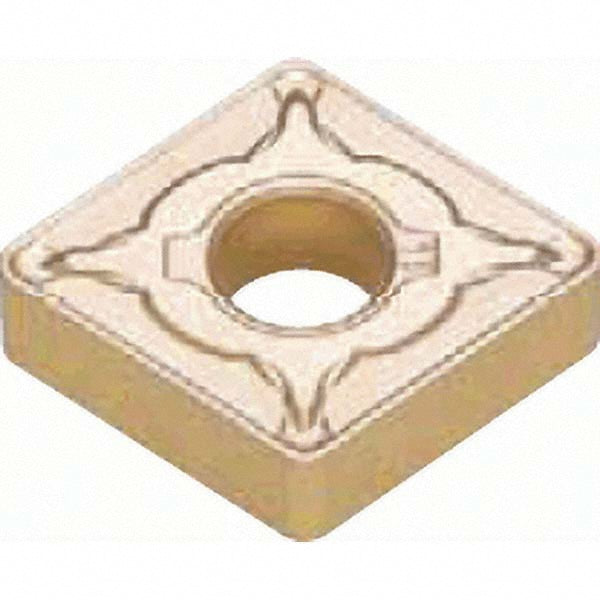

CNMG 543 THS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772496

Tungaloy

CNMG 543 THS Carbide Insert, Grade T9215, TiCN - Tungaloy 6772496

MFR# 6772496ISO/ANSI# CNMG 543 THSSeries CNMG-THS

$28.42List $36.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6772496 is a CNMG 543 THS carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTHS
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG 543 THS
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 543 THS
Length range0.6000 - 0.6500
Manufacturers catalog number6772496
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.4331
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
