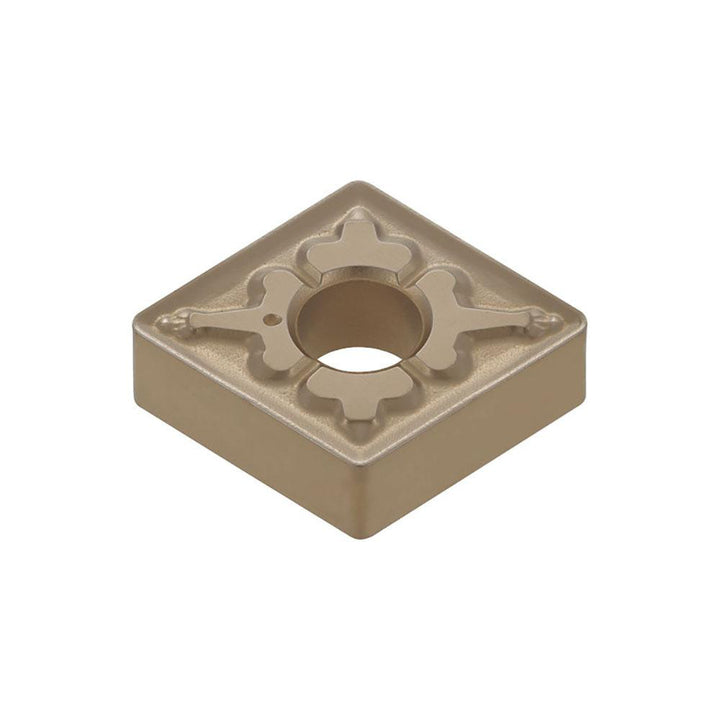

CNMG 643 TM Carbide Insert, Grade T9215, TiCN - Tungaloy 6773859

Tungaloy

CNMG 643 TM Carbide Insert, Grade T9215, TiCN - Tungaloy 6773859

MFR# 6773859ISO/ANSI# CNMG190612Series CNMG-TM

$34.69List $44.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6773859 is a CNMG 643 TM carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerTM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3120
Included angle80
Industry standard numberCNMG 643 TM
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643 TM
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number6773859
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
