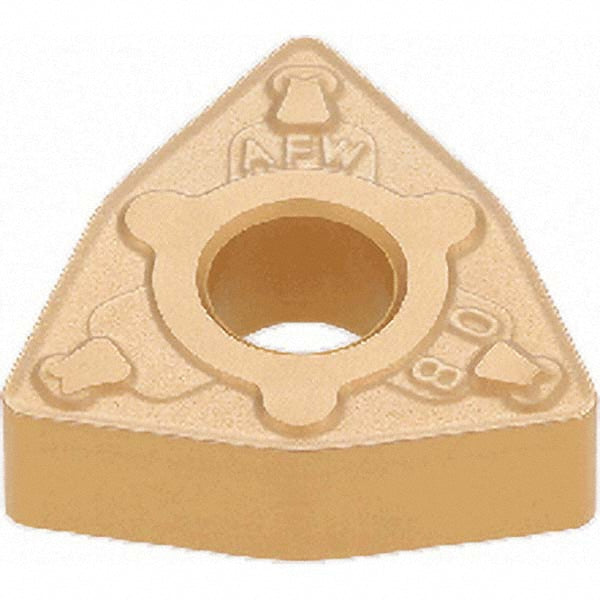

WNMG 331 AFW Carbide Insert, Grade T9215, TiCN - Tungaloy 6773939

Tungaloy

WNMG 331 AFW Carbide Insert, Grade T9215, TiCN - Tungaloy 6773939

MFR# 6773939ISO/ANSI# WNMG 331 AFWSeries WNMG-AFW

$14.50List $18.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6773939 is a WNMG 331 AFW carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerAFW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleWiper Edge
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG 331 AFW
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5120
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 331 AFW
Length range0.5000 - 0.6000
Manufacturers catalog number6773939
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-12
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.5120in
Wiper edgeYes
