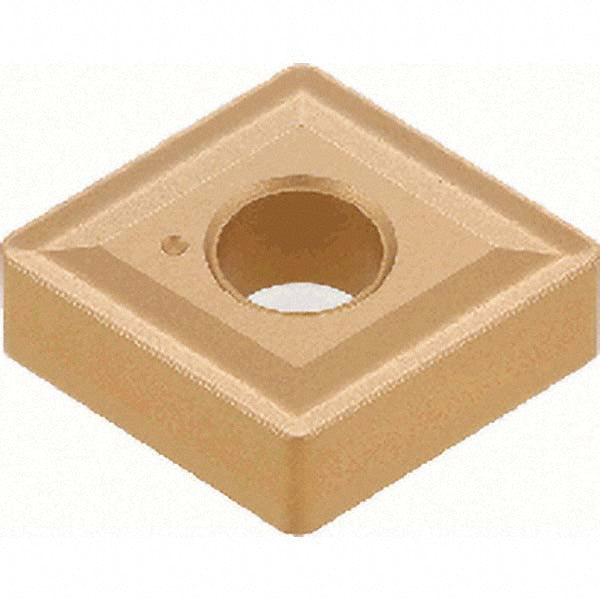

CNMG 321 Carbide Insert, Grade T9215, TiCN - Tungaloy 6773946

Tungaloy

CNMG 321 Carbide Insert, Grade T9215, TiCN - Tungaloy 6773946

MFR# 6773946ISO/ANSI# CNMG 321Series CNMG

$10.49List $13.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeT9215
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6773946 is a CNMG 321 carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberCNMG 321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond 80
Insert size code321
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG 321
Length range0.3000 - 0.4000
Manufacturers catalog number6773946
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
