Tungaloy

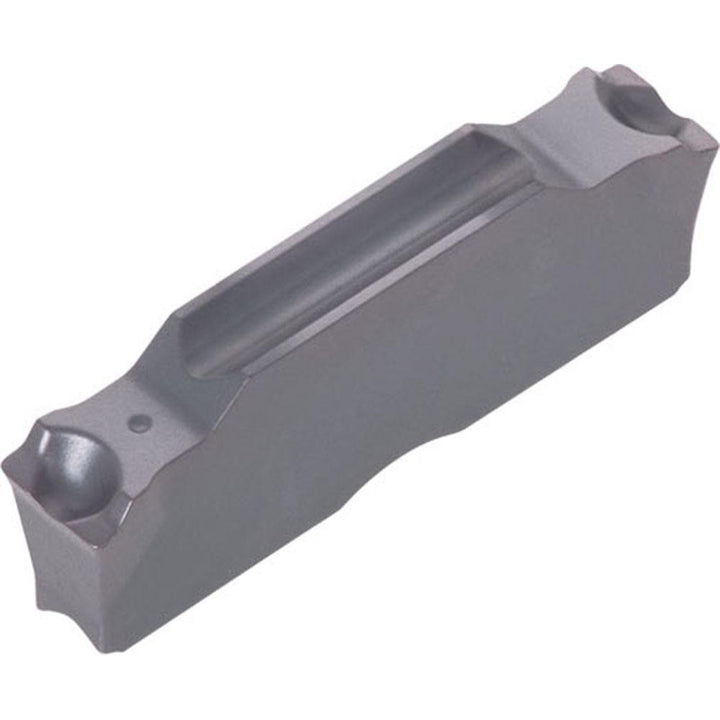

Solid Carbide Insert, Grade AH7025, TiAlN - Tungaloy 6776953
MFR# 6776953Series DGL
$30.09List $38.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAH7025
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6776953 is a solid carbide indexable insert, grade AH7025, TiAlN coated. Suited for steel, stainless steel, superalloy.
Specifications
Chip breakerGL
Coating finishTiAlN
Coating processPVD
Corner radius0.0120
Cutting width0.1570
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4
Insert styleDGL
Lead angle90
Manufacturer gradeAH7025
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Primary workpiece materialSteel; Stainless Steel; Superalloy
RakePositive
