Tungaloy

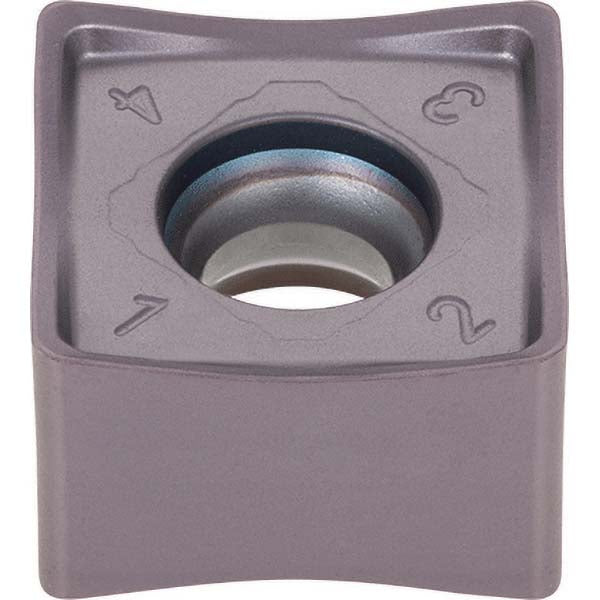

SNMU120608HNEN-MM AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6780139
MFR# 6780139ISO/ANSI# SNMU120608HNEN-MM AH3135Cat# SNMU120608HNEN-MMSeries SNMU
$25.62List $32.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeAH3135
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6780139 is a SNMU120608HNEN-MM AH3135 solid carbide indexable insert, grade AH3135, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeSNMU120608HNEN-MM AH3135
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityTHSN12
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120608
Insert styleSNMU
Iso codeSNMU120608HNEN-MM AH3135
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberSNMU120608HNEN-MM
Manufacturer gradeAH3135
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP30; M30
Maximum depth of cut0.3740
Multi use toolNo
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsISO
Thickness0.2950
Thickness range0.2500 to 0.3500
Width0.4724
