Tungaloy

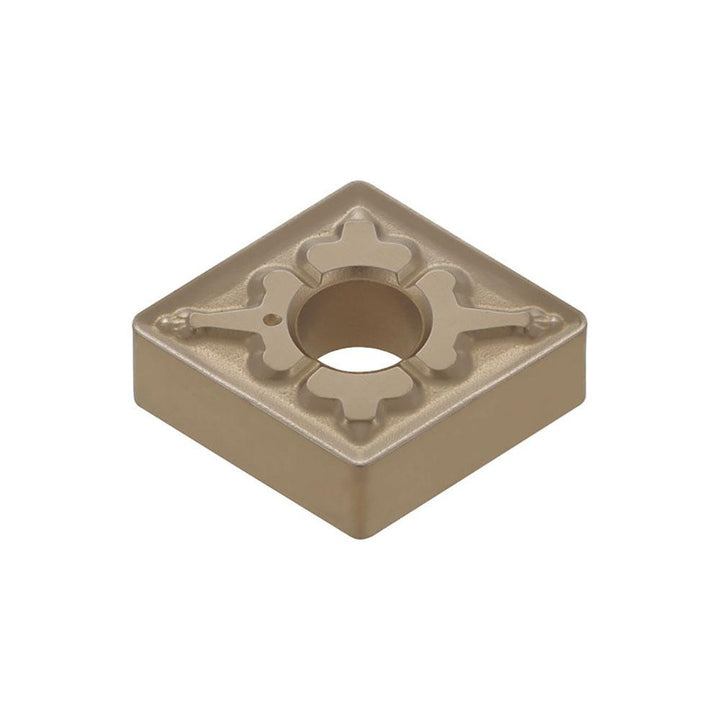

CNMG 543 TM Carbide Insert, Grade T9225, Titanium - Tungaloy 6780753
MFR# 6780753ISO/ANSI# CNMG 543 TMSeries CNMG-TM
$28.42List $36.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6780753 is a CNMG 543 TM carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in3/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG 543 TM
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 543 TM
Length range0.6000 - 0.6500
Manufacturers catalog number6780753
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
