Tungaloy

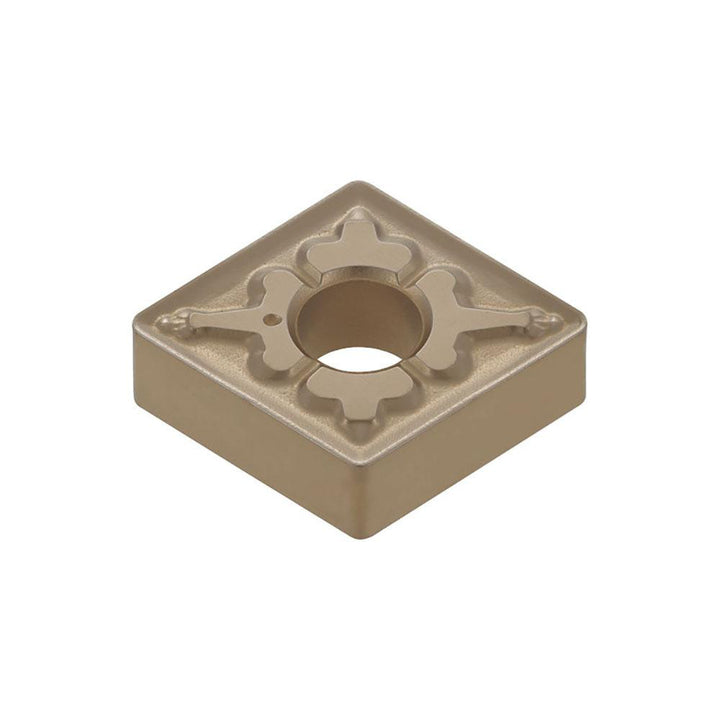

CNMG 432 TM Carbide Insert, Grade T9225, Titanium - Tungaloy 6780921
MFR# 6780921ISO/ANSI# CNMG 432 TMSeries CNMG-TM
$17.50List $22.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6780921 is a CNMG 432 TM carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 TM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432 TM
Length range0.5000 - 0.6000
Manufacturers catalog number6780921
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
