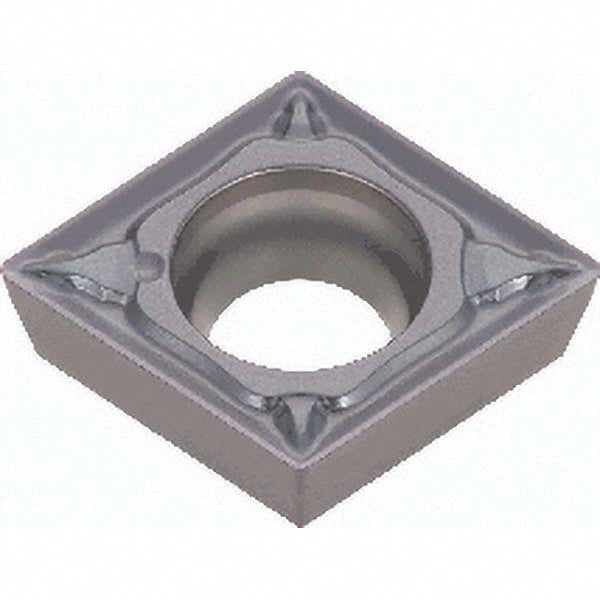

CPMT09T304-PS Carbide Insert, Grade T9225, Titanium - Tungaloy 6781289

Tungaloy

CPMT09T304-PS Carbide Insert, Grade T9225, Titanium - Tungaloy 6781289

MFR# 6781289ISO/ANSI# CPMT 32.51 PSSeries CPMT-PS

$14.43List $18.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeT9225
MaterialCarbide
CoatingTitanium

Description

The Tungaloy 6781289 is a CPMT09T304-PS carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerPS
Clearance codeP
Coating finishTitanium
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCPMT 32.51 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T304-PS
Length range0.3000 - 0.4000
Manufacturers catalog number6781289
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
