Tungaloy

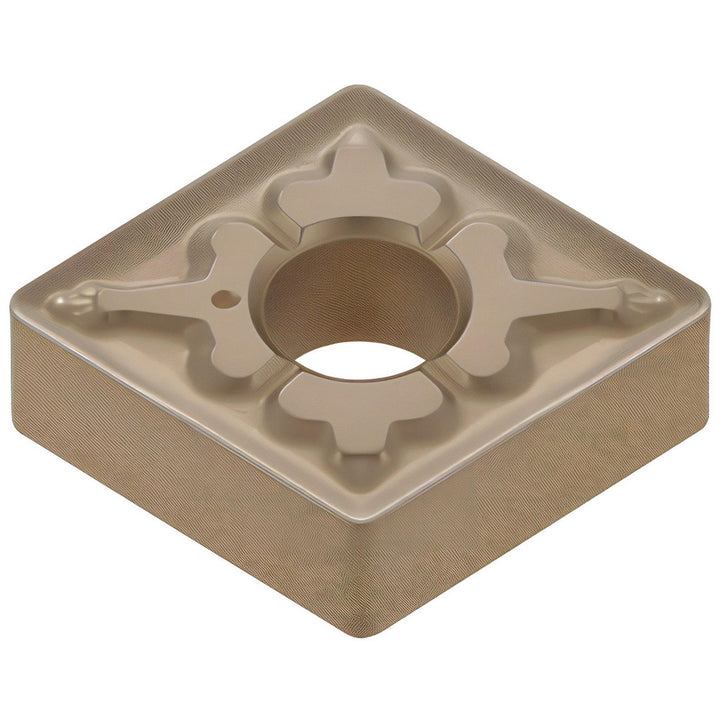

CNMG120408-TM T9205 Carbide Insert, Grade T9205, Titanium - Tungaloy 6785666
MFR# 6785666ISO/ANSI# CNMG 432 TMSeries CNMG-TM
$17.50List $22.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT9205
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6785666 is a CNMG120408-TM T9205 carbide indexable insert, grade T9205, Titanium coated. Suited for steel, cast iron.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 TM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-TM T9205
Length range0.5000 - 0.6000
Manufacturers catalog number6785666
Manufacturer gradeT9205
Material gradeP01; P10; K10; K20
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
