Tungaloy

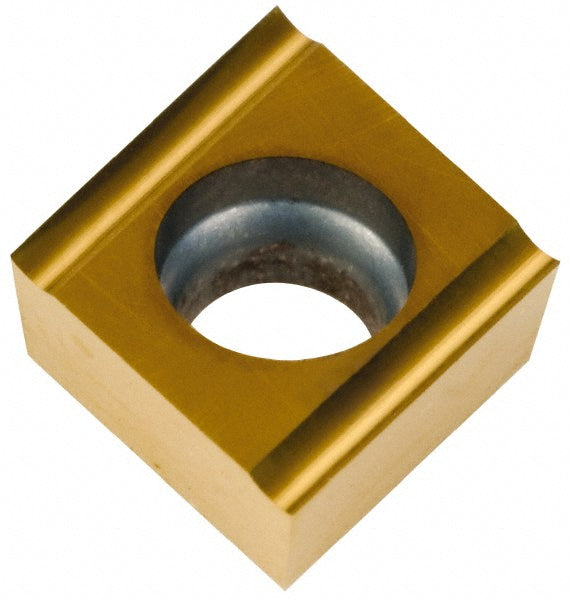

CCGT060200FR Carbide Insert, Grade J740, TiN - Tungaloy 6801257
MFR# 6801257ISO/ANSI# CCGT 21.5V FR-J10Series CCGTR-J10
$21.16List $27.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6801257 is a CCGT060200FR carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ10
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0010
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCGT 21.5V FR-J10
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060200FR
Length range0.0000 - 0.3000
Manufacturers catalog number6801257
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.1654
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
