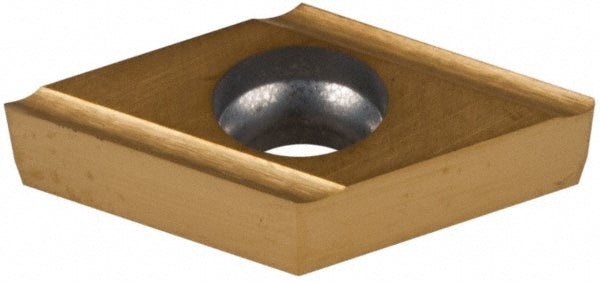

DCGT070202FRJ10 Carbide Insert, Grade J740, TiN - Tungaloy 6802787
MFR# 6802787ISO/ANSI# DCGT 21.50.5 FR-J10Series DCGTR-J10
$22.18List $28.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6802787 is a DCGT070202FRJ10 carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ10
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCGT 21.50.5 FR-J10
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.6140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.50.5
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070202FRJ10
Length range0.6000 - 0.6500
Manufacturers catalog number6802787
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
