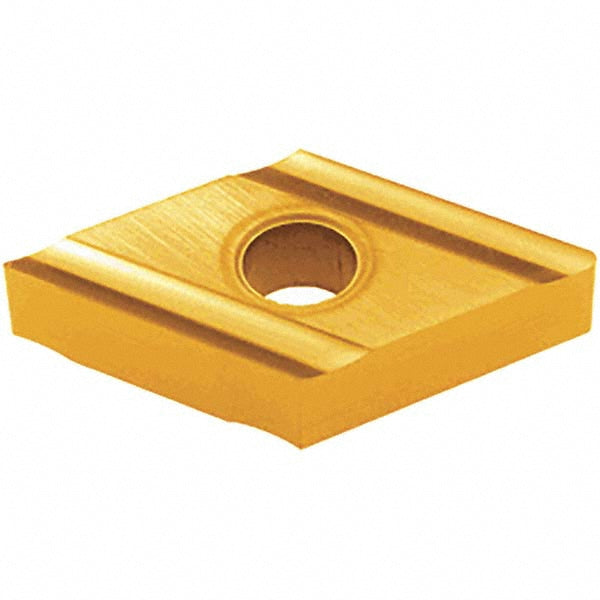

DNGG 150404R Carbide Insert, Grade TH10 - Tungaloy 6803209

Tungaloy

DNGG 150404R Carbide Insert, Grade TH10 - Tungaloy 6803209

MFR# 6803209ISO/ANSI# DNGG 431 R-PSeries DNGGR-P

$23.55List $30.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTH10
MaterialCarbide

Description

The Tungaloy 6803209 is a DNGG 150404R carbide indexable insert, grade TH10. Suited for cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerP
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNGG 431 R-P
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG 150404R
Length range0.7000 - 10.0000
Manufacturers catalog number6803209
Manufacturer gradeTH10
Material gradeP10; M10; K10; N10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-30
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
