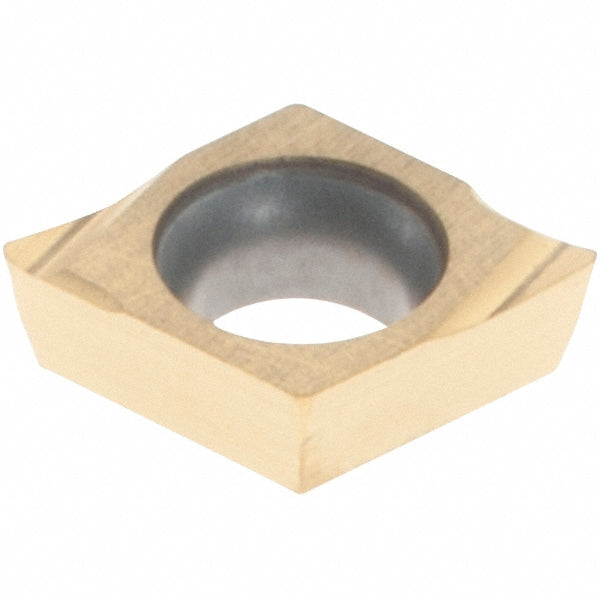

EPGT040102L-W08 Carbide Insert, Grade GH110, TiCNO - Tungaloy 6804310

Tungaloy

EPGT040102L-W08 Carbide Insert, Grade GH110, TiCNO - Tungaloy 6804310

MFR# 6804310ISO/ANSI# EPGT 520.5 L-W08Series EPGTL-W08

$26.32List $33.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeDiamond
GradeGH110
MaterialCarbide
CoatingTiCNO

Description

The Tungaloy 6804310 is a EPGT040102L-W08 carbide indexable insert, grade GH110, TiCNO coated. Suited for cast iron, non-ferrous metal.

Specifications

Chip breakerW08
Clearance codeP
Coating finishTiCNO
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0910
Included angle75degree
Industry standard numberEPGT 520.5 L-W08
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert length0.1610
Insert materialCarbide
Insert shapeDiamond
Insert size code520.5
Insert styleEPGT
Insert thickness in1/16
Iso codeEPGT040102L-W08
Length range0.0000 - 0.3000
Manufacturers catalog number6804310
Manufacturer gradeGH110
Material gradeK10; K25; N05; N15
Maximum depth of cut0.0394
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in5/32in
Wiper edgeNo
