Tungaloy

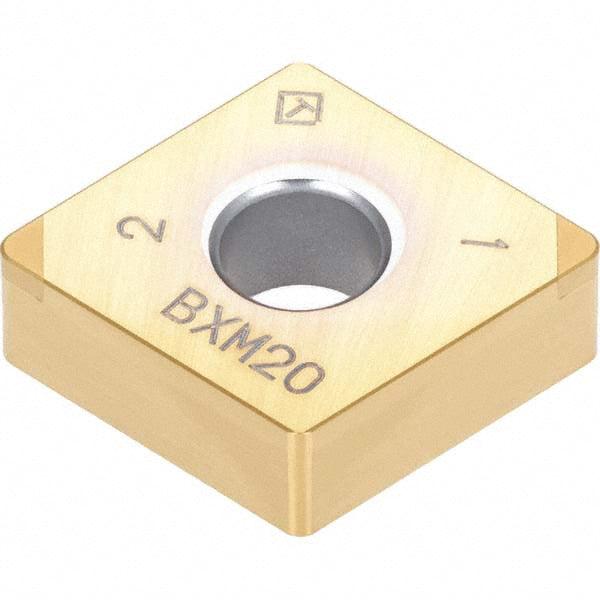

CNGA 432 PCBN Insert, Grade BXM20, TiCN - Tungaloy 6804791
MFR# 6804791ISO/ANSI# CNGA120408Series 2QP-CNM/GA
$74.25List $84.90
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeBXM20
MaterialPCBN
CoatingTiCN
Description
The Tungaloy 6804791 is a CNGA 432 pcbn indexable insert, grade BXM20, TiCN coated. Suited for hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerH
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard number2QP-CNGA 432-H
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 432
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6804791
Manufacturer gradeBXM20
Material gradeH10
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0870
Tolerance codeG
Width in1/2
Wiper edgeNo
