Tungaloy

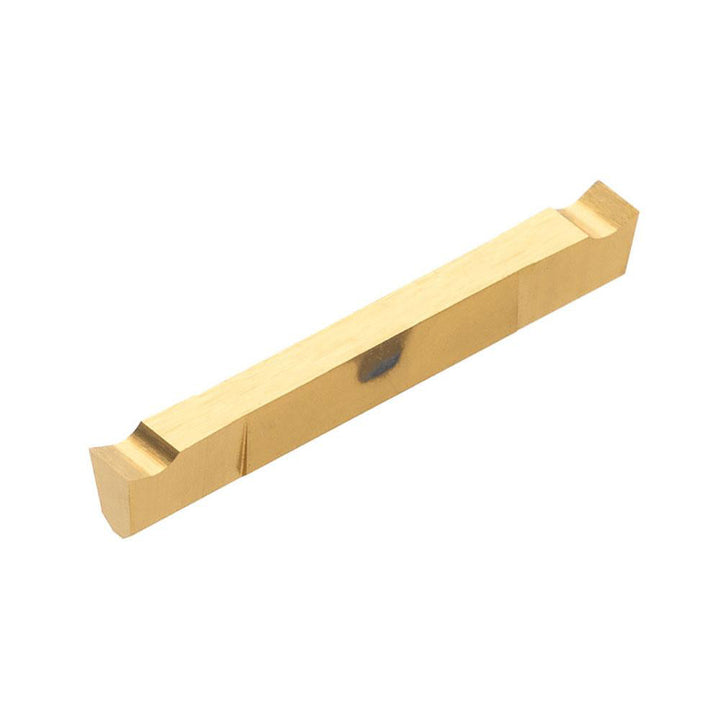

Solid Carbide Insert, Grade J740, Coated - Tungaloy 6804828
MFR# 6804828Series J-Series
$31.38List $40.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeJ740
MaterialSolid Carbide
CoatingCoated
Description
The Tungaloy 6804828 is a solid carbide indexable insert, grade J740, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerF
Coating finishCoated
Coating processPVD
Corner radius0.0020
Cutting height (mm)3.00
Cutting tool applicationCut-off
Cutting width0.0787
Insert height0.1180
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code200
Insert styleJCGN
Lead angle0
Lead angle directionNeutral
Manufacturer gradeJ740
Material gradeMicrograin
Multi use toolNo
Overall length (mm)20.00
Primary workpiece materialStainless Steel; Steel
