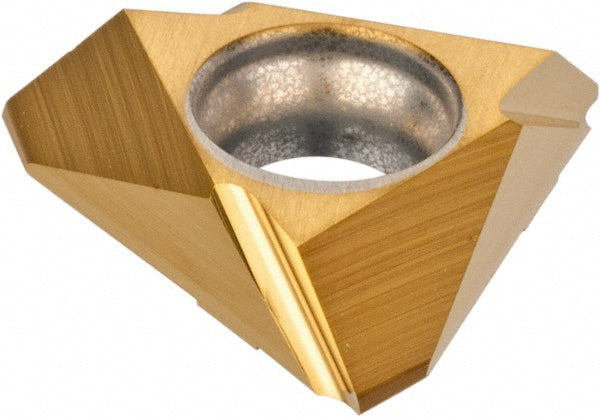

JTBR3010F Carbide Insert, Grade J740, TiN - Tungaloy 6804929

Tungaloy

JTBR3010F Carbide Insert, Grade J740, TiN - Tungaloy 6804929

MFR# 6804929ISO/ANSI# JTBR3010FSeries JTBR

$32.28List $41.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeJ740
MaterialCarbide
CoatingTiN

Description

The Tungaloy 6804929 is a JTBR3010F carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.

Specifications

Chip breakerCommon
Clearance codeT
Coating finishTiN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle45degree
Industry standard numberJTBR3010F
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code3010
Insert styleJTBR
Insert thickness in1/8
Iso codeJTBR3010F
Manufacturers catalog number6804929
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.0984
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle6
StandardsANSI; ISO
Tolerance codeB
Wiper edgeNo
