Tungaloy

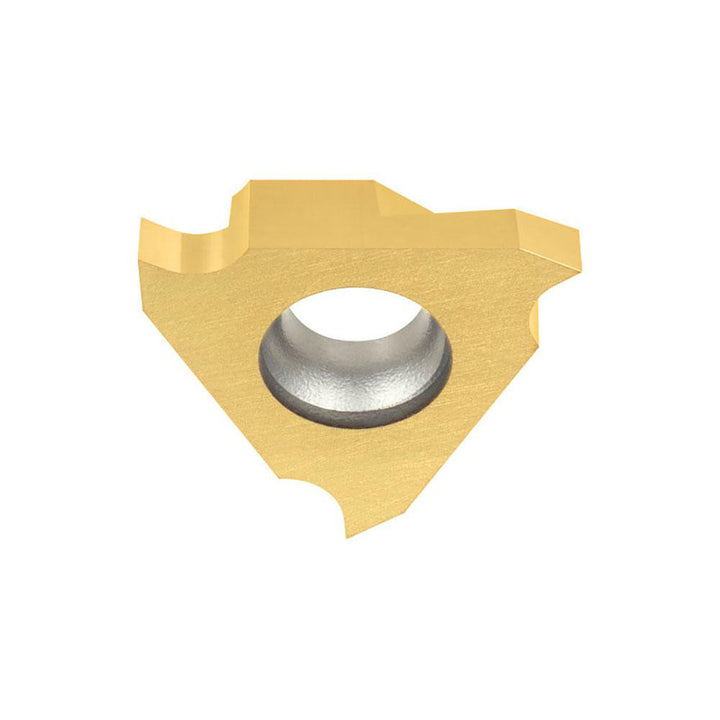

ISO 13399 Solid Carbide Insert, Grade J740, TiN - Tungaloy 6804980
MFR# 6804980ISO/ANSI# ISO 13399Series J
$32.51List $41.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeJ740
MaterialSolid Carbide
CoatingTiN
Description
The Tungaloy 6804980 is a ISO 13399 solid carbide indexable insert, grade J740, TiN coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishTiN
Coating processPVD
Corner radius0.0012
Cutting width0.0295
Full radiusNo
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size3075
Insert size code3075F
Insert styleJTGR
Iso codeISO 13399
Lead angle2
Manufacturer gradeJ740
Material gradeMicrograin
Maximum depth of cut0.0748
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall width (mm)3.18
Primary workpiece materialStainless Steel; Steel
StandardsISO 13399
Thickness in1/8
