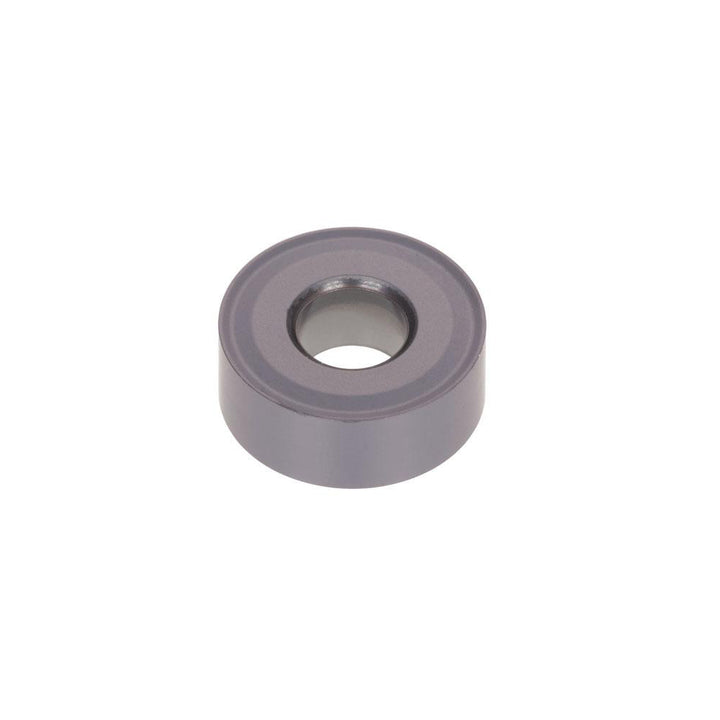

RNMG 43-61 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6805899

Tungaloy

RNMG 43-61 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6805899

MFR# 6805899ISO/ANSI# RNMG120400Series RNMG-61

$14.43List $18.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeR - Round
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6805899 is a RNMG 43-61 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeRNMG43
Ansi size code43
Chip breaker61
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Hole diameter0.2030
Included angle360
Industry standard numberRNMG 43-61
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso codeRNMG 43-61
Iso insert codeRNMG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number6805899
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
