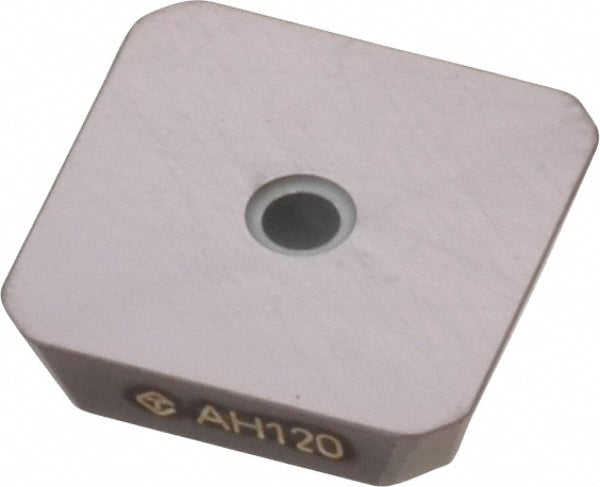

SDKN42ZTN AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806214

Tungaloy

SDKN42ZTN AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806214

MFR# 6806214ISO/ANSI# SDKN42ZTN AH120Cat# SDKN42ZTNSeries SDKN

$16.49List $21.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeAH120
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6806214 is a SDKN42ZTN AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeSDKN42ZTN AH120
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityTMD4400R/LI; EMD4400RI; TGD4400-A; EGD4400
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSDKN
Iso codeSDKN42ZTN AH120
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDKN42ZTN
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.1570
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
