Tungaloy

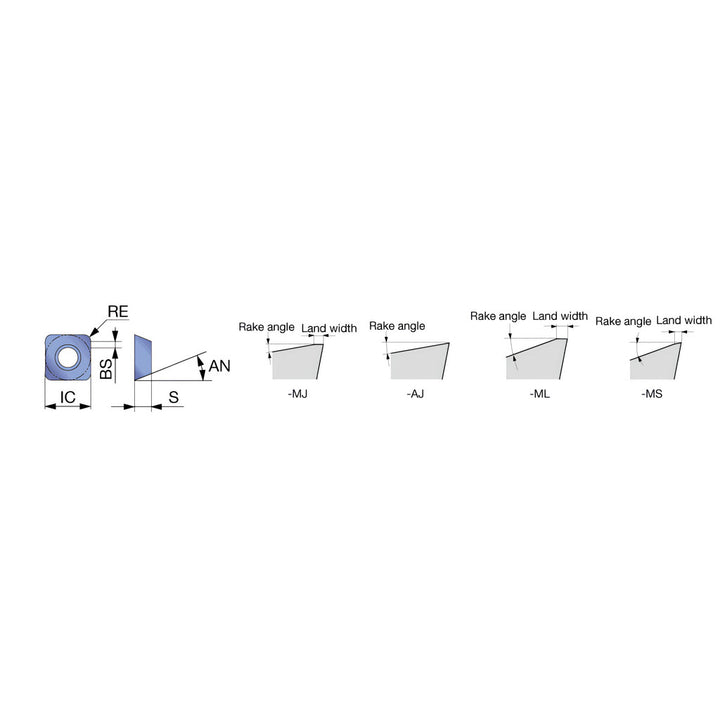

SDMT1204PDPR-ML AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806258
MFR# 6806258ISO/ANSI# SDMT1204PDPR-ML AH120Cat# SDMT1204PDPR-MLSeries SDMT
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6806258 is a SDMT1204PDPR-ML AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeSDMT1204PDPR-ML AH120
Chip breakerML
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityEPO07; TPO07; HPO07-M
Cutting edge effective length0.5000
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDMT
Iso codeSDMT1204PDPR-ML AH120
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMT1204PDPR-ML
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
