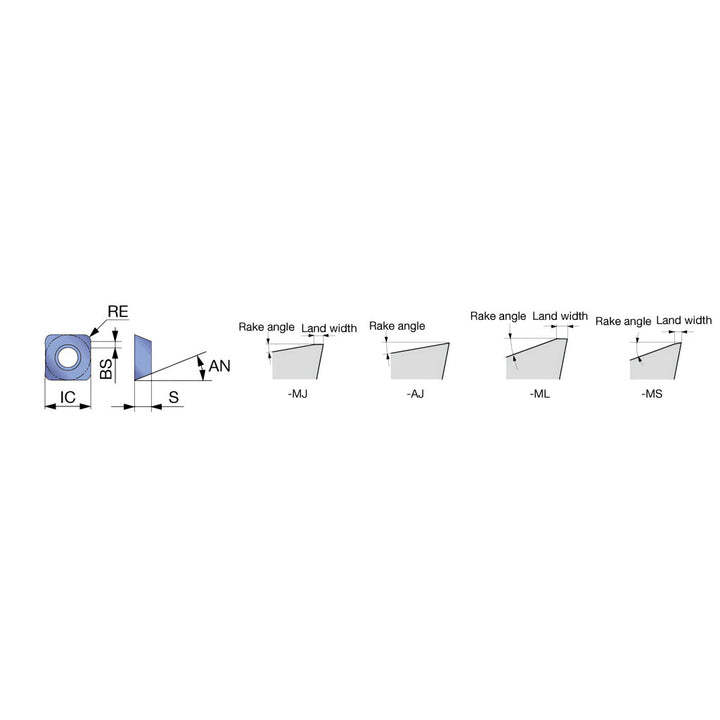

SDMT1204PDSR-MJ AH330 Solid Carbide Insert, Grade AH330, TiAlN - Tungaloy 6806261
MFR# 6806261ISO/ANSI# SDMT1204PDSR-MJ AH330Cat# SDMT1204PDSR-MJSeries SDMT
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAH330
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6806261 is a SDMT1204PDSR-MJ AH330 solid carbide indexable insert, grade AH330, TiAlN coated. Suited for steel.
Specifications
Ansi codeSDMT1204PDSR-MJ AH330
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Cutter series compatibilityEPO07; TPO07; HPO07-M
Cutting edge effective length0.5000
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDMT
Iso codeSDMT1204PDSR-MJ AH330
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMT1204PDSR-MJ
Manufacturer gradeAH330
Material applicationSteel
Material gradeP15; P30
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
