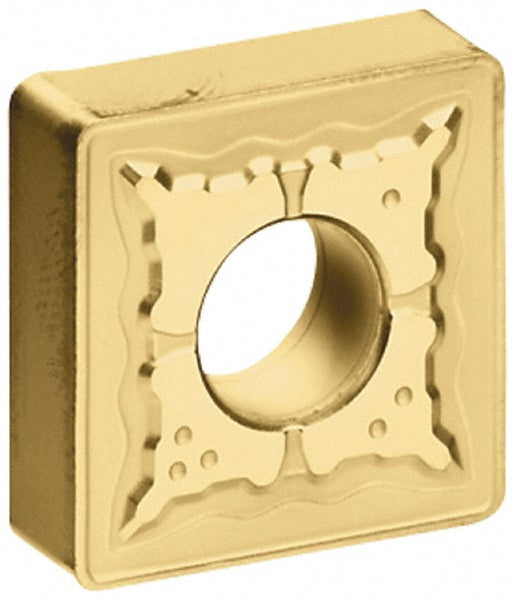

SNMG643 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806893

Tungaloy

SNMG643 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806893

MFR# 6806893ISO/ANSI# SNMG 643 THSeries SNMG-TH

$31.03List $39.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeSquare
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6806893 is a SNMG643 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerTH
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle90degree
Industry standard numberSNMG 643 TH
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG643
Length range0.7000 - 10.0000
Manufacturers catalog number6806893
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
