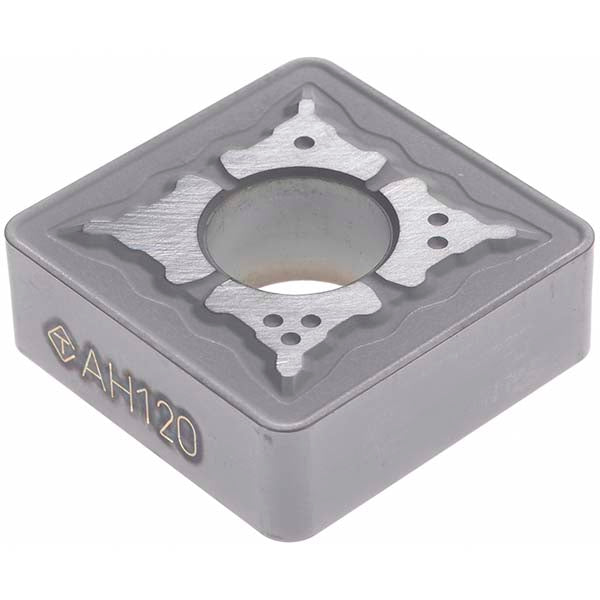

SNMG644 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806913

Tungaloy

SNMG644 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806913

MFR# 6806913ISO/ANSI# SNMG190616Series SNMG-TH

$31.03List $39.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6806913 is a SNMG644 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeSNMG644
Ansi size code644
Chip breakerTH
Chip breaker operationRoughing; Medium Machining; Heavy Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Hole diameter0.3120
Included angle90
Industry standard numberSNMG 644 TH
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG644
Iso insert codeSNMG190616
Iso size code190616
Length range0.7000 - 10.0000
Manufacturers catalog number6806913
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
