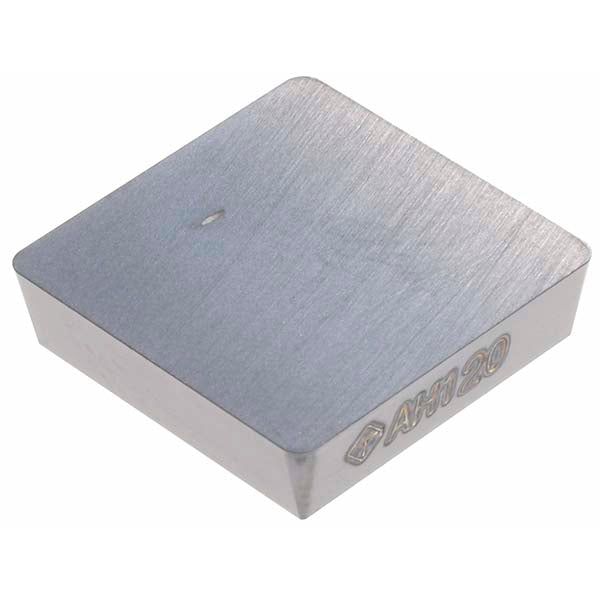

SPG422 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6807063

Tungaloy

SPG422 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6807063

MFR# 6807063ISO/ANSI# SPG120308Series SPG

$23.52List $30.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6807063 is a SPG422 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeSPG422
Ansi size code422
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Included angle90
Industry standard numberSPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso codeSPG422
Iso insert codeSPG120308
Iso size code120308
Length range0.5000 - 0.6000
Manufacturers catalog number6807063
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1667
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
