Tungaloy

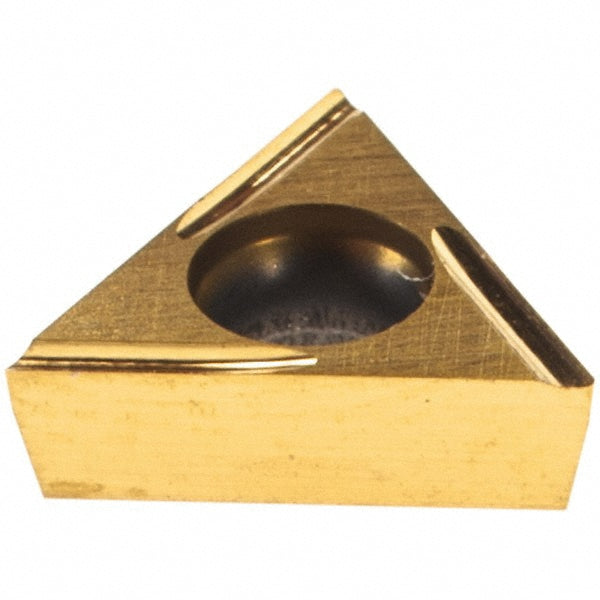

TCGT080201FRJ08 Carbide Insert, Grade J740, TiN - Tungaloy 6807623
MFR# 6807623ISO/ANSI# TCGT 630 FR-J08Series TCGTR-J08
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeTriangle
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6807623 is a TCGT080201FRJ08 carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ08
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0040
Cutting edge styleSharp
Full radiusNo
Hole diameter0.0910
Included angle60degree
Industry standard numberTCGT 630 FR-J08
Inscribed circle in3/16
Insert handRight Hand
Insert holding methodScrew
Insert length0.3230
Insert materialCarbide
Insert shapeTriangle
Insert size code630
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT080201FRJ08
Length range0.3000 - 0.4000
Manufacturers catalog number6807623
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.0394
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.3230in
Wiper edgeNo
