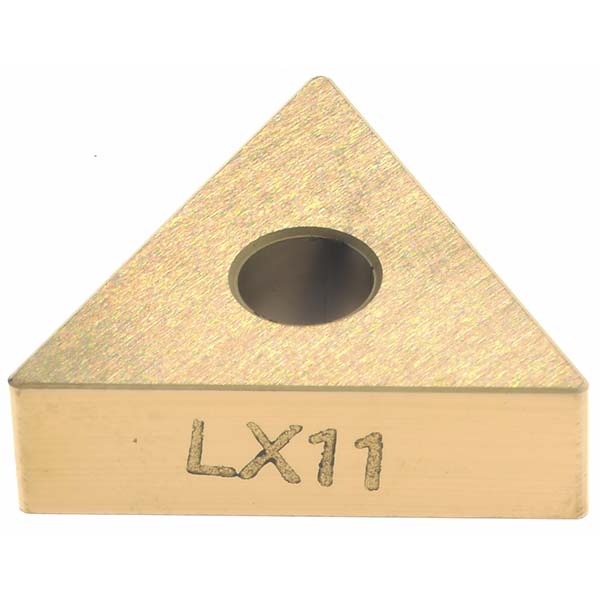

TNGA331 Ceramic Insert, Grade LX11, TiN - Tungaloy 6808083
MFR# 6808083ISO/ANSI# TNGA160404Series TNM/GA
$16.45List $21.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6808083 is a TNGA331 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Ansi insert codeTNGA331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNGA 331
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialCeramic
Insert shapeT - Triangle
Insert size code331
Insert styleTNGA
Insert thickness in3/16
Iso codeTNGA331
Iso insert codeTNGA160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturers catalog number6808083
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6500
Wiper edgeNo
