Tungaloy

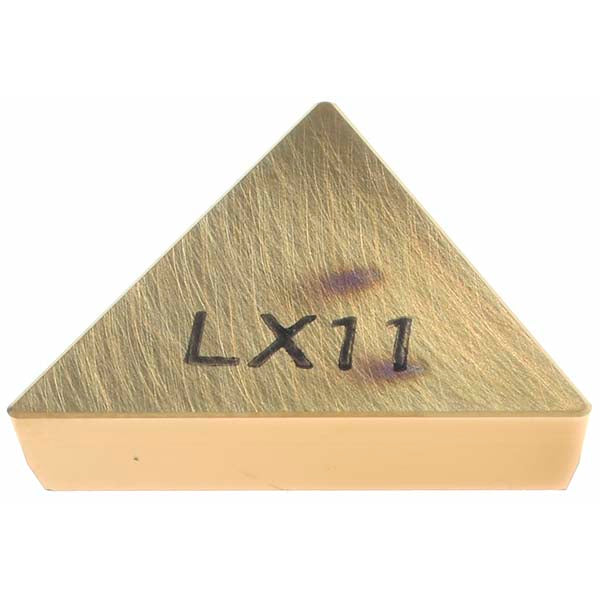

TPGN321 Ceramic Insert, Grade LX11, TiN - Tungaloy 6808838
MFR# 6808838ISO/ANSI# TPGN160304Series TPM/GN
$18.13List $23.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6808838 is a TPGN321 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Ansi insert codeTPGN321
Ansi size code321
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60
Industry standard numberTPGN 321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCeramic
Insert shapeT - Triangle
Insert size code321
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN321
Iso insert codeTPGN160304
Iso size code160304
Length range0.6500 - 0.7000
Manufacturers catalog number6808838
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6500
Wiper edgeNo
