TPMN322 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6809067

Tungaloy

TPMN322 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6809067

MFR# 6809067ISO/ANSI# TPMN160308Series TPM/GN

$16.41List $21.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

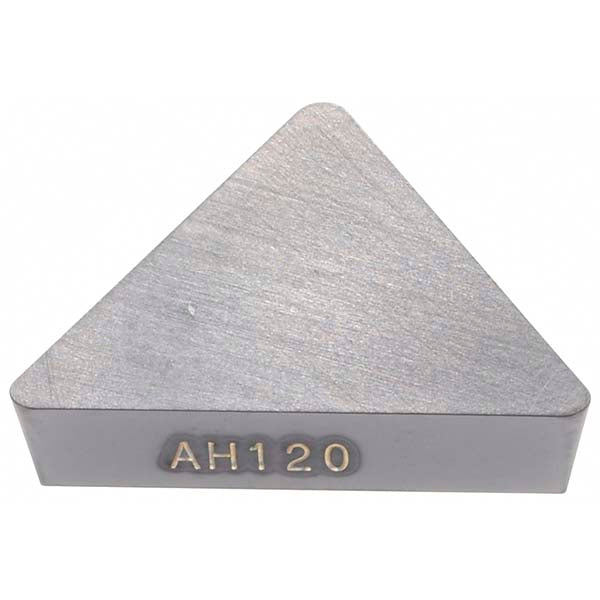

The Tungaloy 6809067 is a TPMN322 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeTPMN322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Included angle60
Industry standard numberTPMN 322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPMN
Insert thickness in1/8
Iso codeTPMN322
Iso insert codeTPMN160308
Iso size code160308
Length range0.6500 - 0.7000
Manufacturers catalog number6809067
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
