Tungaloy

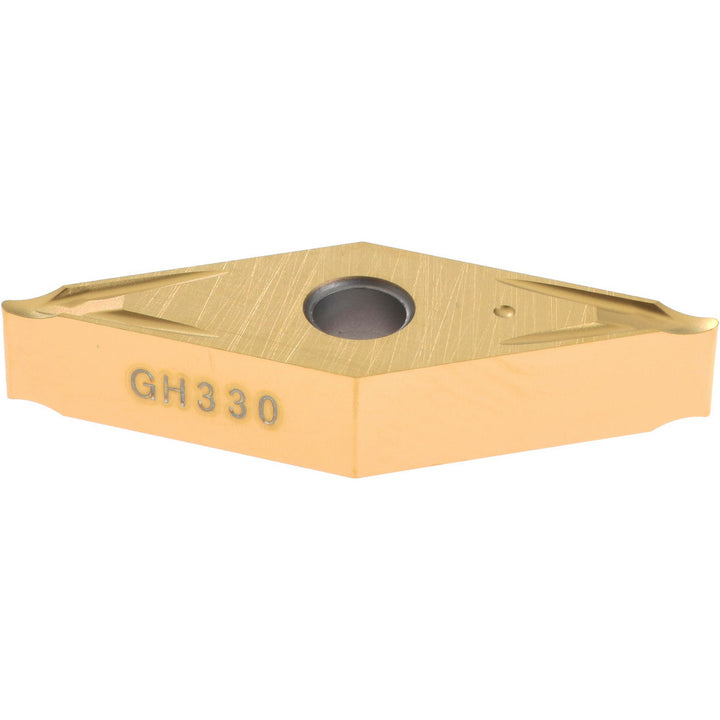

VNMG331SS Carbide Insert, Grade GH330, TiCNO - Tungaloy 6809441
MFR# 6809441ISO/ANSI# VNMG160404Series VNMG-SS
$20.74List $26.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeGH330
MaterialCarbide
CoatingTiCNO
Description
The Tungaloy 6809441 is a VNMG331SS carbide indexable insert, grade GH330, TiCNO coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerSS
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCNO
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG 331 SS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG331SS
Iso insert codeVNMG160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number6809441
Manufacturer gradeGH330
Material gradeP15; P30; M15; M30; K05; K30
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
