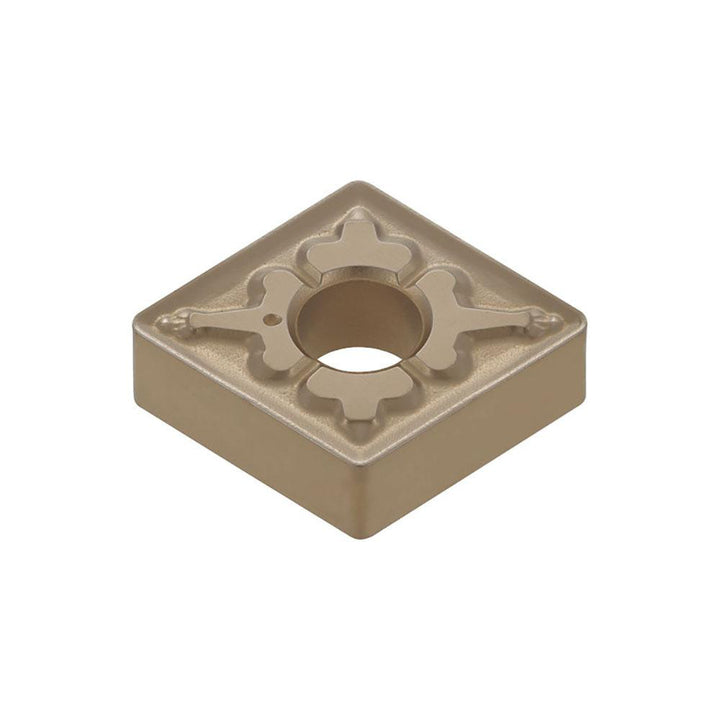

CNMG 543 TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6811649
MFR# 6811649ISO/ANSI# CNMG 543 TMSeries CNMG-TM
$26.08List $33.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6811649 is a CNMG 543 TM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG 543 TM
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 543 TM
Length range0.6000 - 0.6500
Manufacturers catalog number6811649
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
