Tungaloy

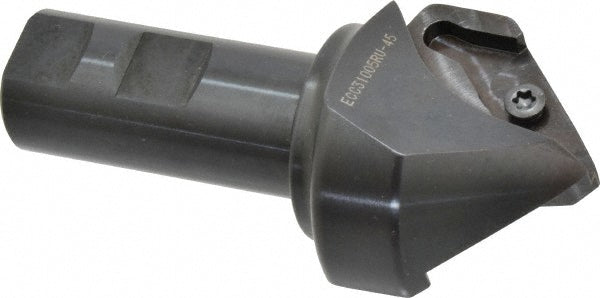

Indexable End Mills - Tungaloy 6811811
MFR# 6811811
$495.26
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Tungaloy 6811811 indexable end mills. Suited for universal.
Specifications
Axial rake angle degrees-5 to -3
Compatible insert size codeXCET3104
Cutting directionRight Hand
End mill materialSolid Carbide
Functional length4.2500
Head length1.9690
Included angle degree90
Insert holding methodScrew
Insert styleXCET
Maximum body diameter1.0000
Maximum cutting diameter2.2050
Maximum depth of cut0.8270
Maximum rpm3000
Minimum cutting diameter1.8460
Number of cutter inserts2
Number of flutes2
Overall height2.2050
Overall length4.2500
Primary workpiece materialUniversal
Radial rake angle degrees-15 to -12
Shank diameter in1
Shank typeWeldon Flat
StandardsISO
Toolholder styleECC
Tool applicationChamfering
