Tungaloy

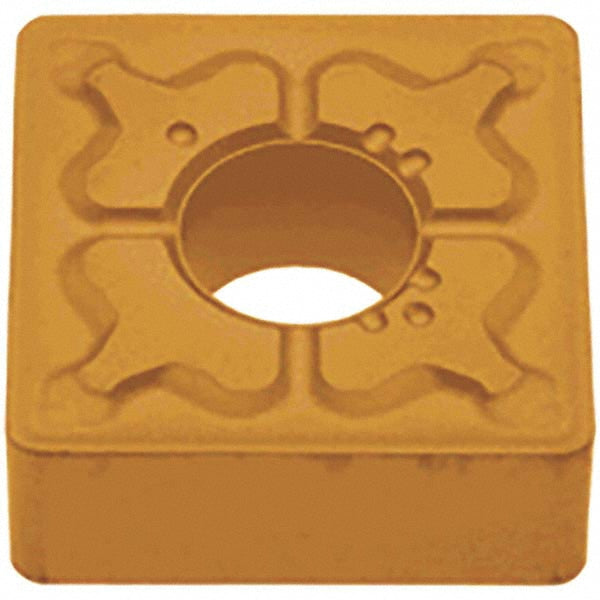

SNMG 543 TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6811976
MFR# 6811976ISO/ANSI# SNMG 543 TMSeries SNMG-TM
$25.57List $32.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6811976 is a SNMG 543 TM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMG 543 TM
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 543 TM
Length range0.6000 - 0.6500
Manufacturers catalog number6811976
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
