Tungaloy

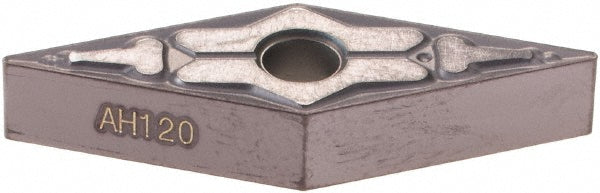

Diamond 35 3/8" IC Carbide Insert, Grade AH120, TiAlN - Tungaloy 6812134
MFR# 6812134ISO/ANSI# VNMG 331 TMSeries VNMG-TM
$20.74List $26.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6812134 is a carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG 331 TM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number6812134
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
