SDGT1204PDFR-AJ TH10 Solid Carbide Insert, Grade TH10 - Tungaloy 6812503
MFR# 6812503ISO/ANSI# SDGT1204PDFR-AJ TH10Cat# SDGT1204PDFR-AJSeries SDGT
$17.23List $22.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTH10
MaterialSolid Carbide
Description
The Tungaloy 6812503 is a SDGT1204PDFR-AJ TH10 solid carbide indexable insert, grade TH10. Suited for cast iron, hard material, non-ferrous metal, superalloys & titanium.

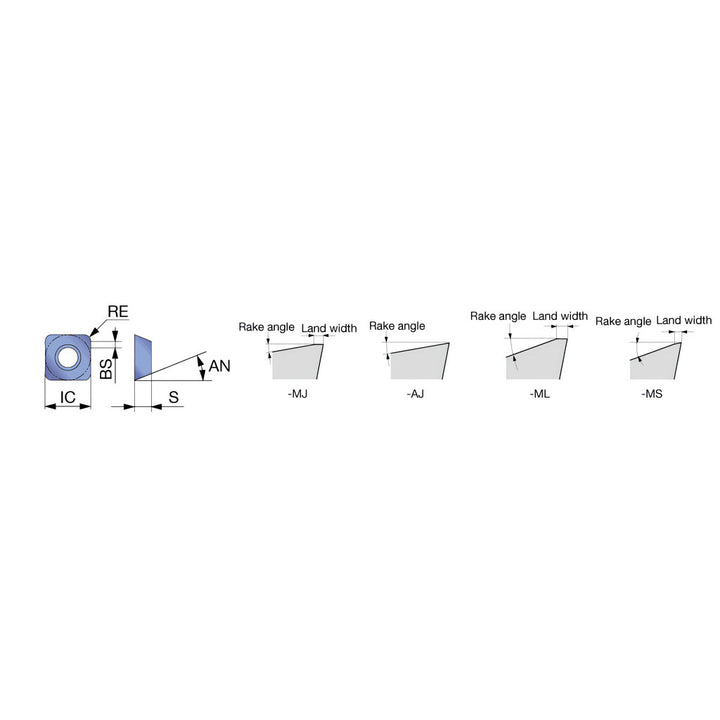

Specifications
Ansi codeSDGT1204PDFR-AJ TH10
Chip breakerAJ
Coating processUncoated
Corner radius0.0310
Cutter series compatibilityEPO07; TPO07; HPO07-M
Cutting edge effective length0.5000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSDGT
Iso codeSDGT1204PDFR-AJ TH10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDGT1204PDFR-AJ
Manufacturer gradeTH10
Material applicationCast Iron; Hard Material; Non-Ferrous Metal; Superalloys & Titanium
Material gradeP10; M10; K10; N10
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
