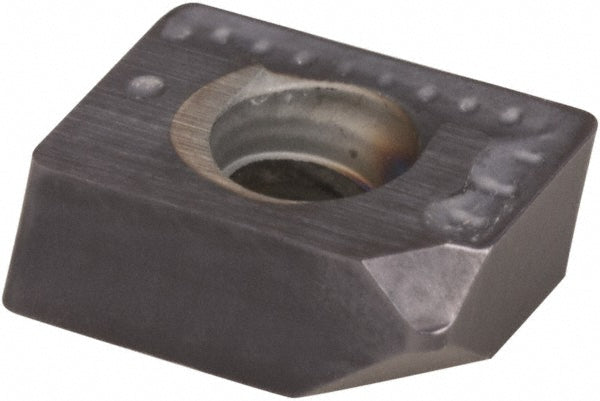

XXMU08T204PR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6815358
MFR# 6815358ISO/ANSI# XXMU08T204PR-MJ AH120Cat# XXMU08T204PR-MJSeries XXMU
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6815358 is a XXMU08T204PR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeXXMU08T204PR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityEVX
Cutting edge styleCentral; Peripheral
Included angle degree90
Inscribed circle0.2200
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code08T204
Insert styleXXMU
Iso codeXXMU08T204PR-MJ AH120
Length0.3230
Length range0.3200 to 0.4000
Manufacturers catalog numberXXMU08T204PR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.2760
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.2200
