Tungaloy

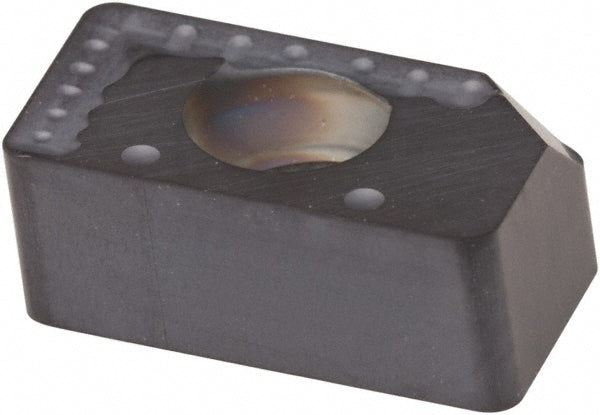

XXMU12X408PR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6815360
MFR# 6815360ISO/ANSI# XXMU12X408PR-MJ AH120Cat# XXMU12X408PR-MJSeries XXMU
$15.59List $20.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6815360 is a XXMU12X408PR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeXXMU12X408PR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEVX
Cutting edge styleCentral; Peripheral
Included angle degree90
Inscribed circle0.3110
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code12X408
Insert styleXXMU
Iso codeXXMU12X408PR-MJ AH120
Length0.5200
Length range0.5000 to 0.6000
Manufacturers catalog numberXXMU12X408PR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.4530
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.3110
