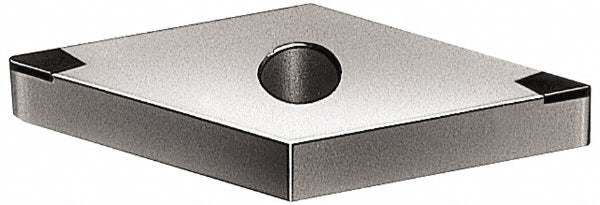

VNGA 332 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX380 - Tungaloy 6818030

Tungaloy

VNGA 332 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX380 - Tungaloy 6818030

MFR# 6818030ISO/ANSI# 2QP-VNGA 332Series 2QP-VNGA

$68.66List $78.50 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeBX380
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Tungaloy 6818030 is a VNGA 332 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BX380. Suited for hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard number2QP-VNGA 332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 35
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA 332
Length range0.7000 - 10.0000
Manufacturers catalog number6818030
Manufacturer gradeBX380
Material gradeCoarse Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0870
Tolerance codeG
Width in3/8in
Wiper edgeNo
