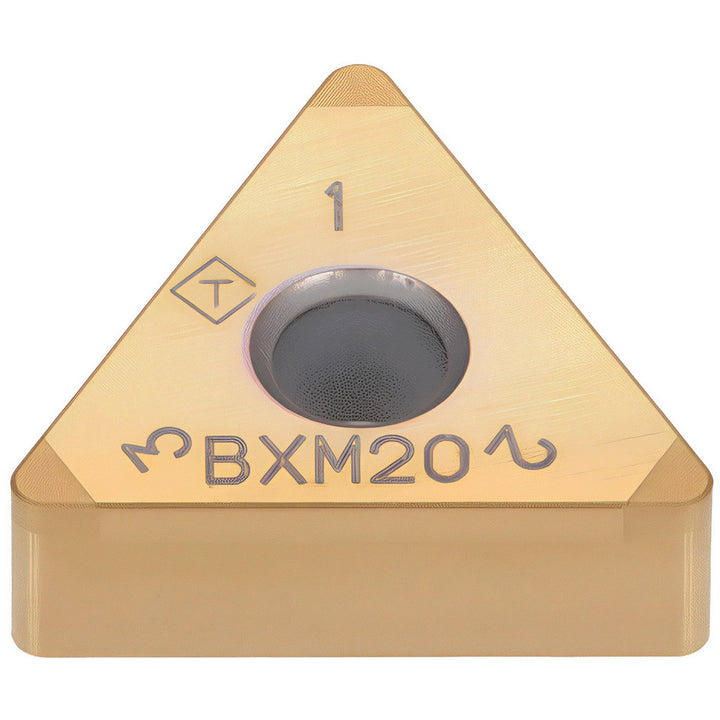

Triangle 3/8" IC Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX380 - Tungaloy 6818048

Tungaloy

Triangle 3/8" IC Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX380 - Tungaloy 6818048

MFR# 6818048ISO/ANSI# 3QP-TNGA 332Series 3QP-TNGA

$89.08List $101.85 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeBX380
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Tungaloy 6818048 is a polycrystalline cubic boron nitride (pcbn) indexable insert, grade BX380. Suited for hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard number3QP-TNGA 332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeTriangle
Insert size code332
Insert styleTNGA
Insert thickness in3/16
Length range0.6500 - 0.7000
Manufacturers catalog number6818048
Manufacturer gradeBX380
Material gradeCoarse Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0750
Tolerance codeG
Width0.6500in
Wiper edgeNo
