Tungaloy

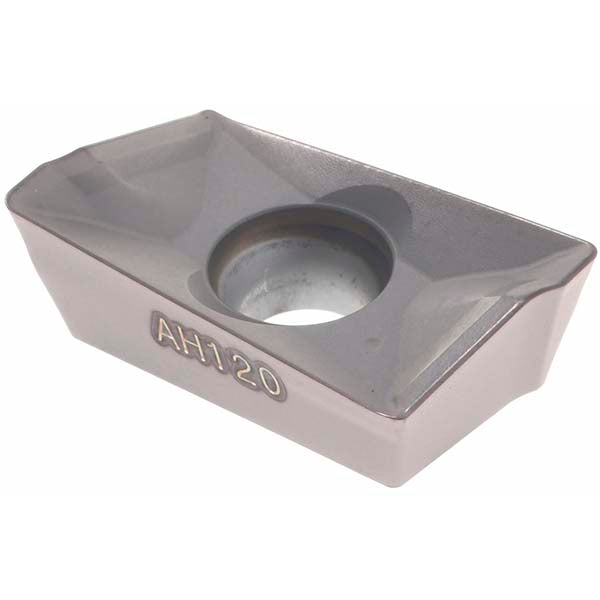

ASMT170508PDPR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6818307
MFR# 6818307ISO/ANSI# ASMT170508PDPR-MJ AH120Cat# ASMT170508PDPR-MJSeries ASMT
$21.80List $27.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6818307 is a ASMT170508PDPR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeASMT170508PDPR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEPS17; TPS17
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3860
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170508
Insert styleASMT
Iso codeASMT170508PDPR-MJ AH120
Length0.7280
Length range0.7000 to 0.9000
Manufacturers catalog numberASMT170508PDPR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.6300
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsISO
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3860
