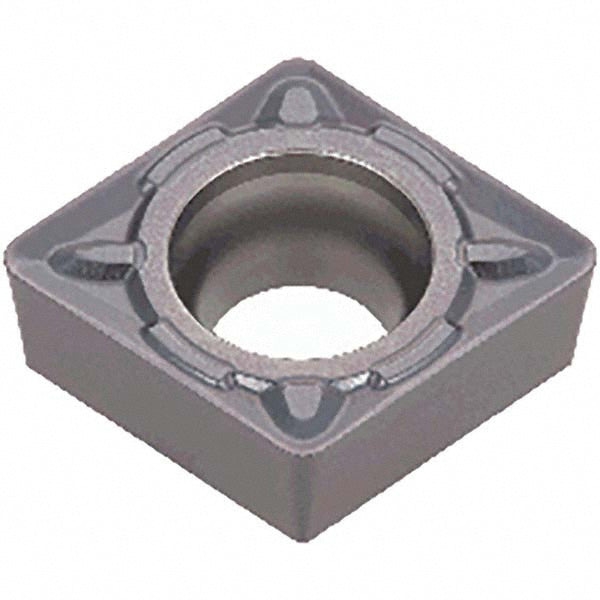

CCMT21.51PM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6818315

Tungaloy

CCMT21.51PM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6818315

MFR# 6818315ISO/ANSI# CCMT 21.51 PMSeries CCMT-PM

$12.59List $16.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6818315 is a CCMT21.51PM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerPM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCMT 21.51 PM
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT21.51PM
Length range0.0000 - 0.3000
Manufacturers catalog number6818315
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
