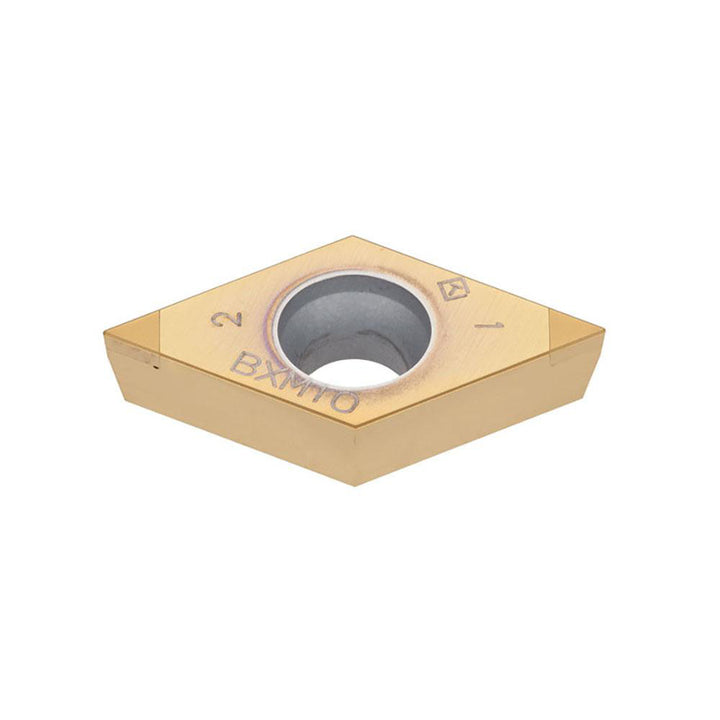

DCMW32.52 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX330 - Tungaloy 6820948

Tungaloy

DCMW32.52 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX330 - Tungaloy 6820948

MFR# 6820948ISO/ANSI# 2QP-DCMW 32.52Series 2QP-DCM/GW

$76.31List $87.25 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeBX330
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Tungaloy 6820948 is a DCMW32.52 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BX330. Suited for hard material.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard number2QP-DCMW 32.52
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 55
Insert size code32.52
Insert styleDCMW
Insert thickness in5/32
Iso codeDCMW32.52
Length range0.7000 - 10.0000
Manufacturers catalog number6820948
Manufacturer gradeBX330
Material gradeFine Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0830
Tolerance codeM
Width in3/8in
Wiper edgeNo
